SS-J7018

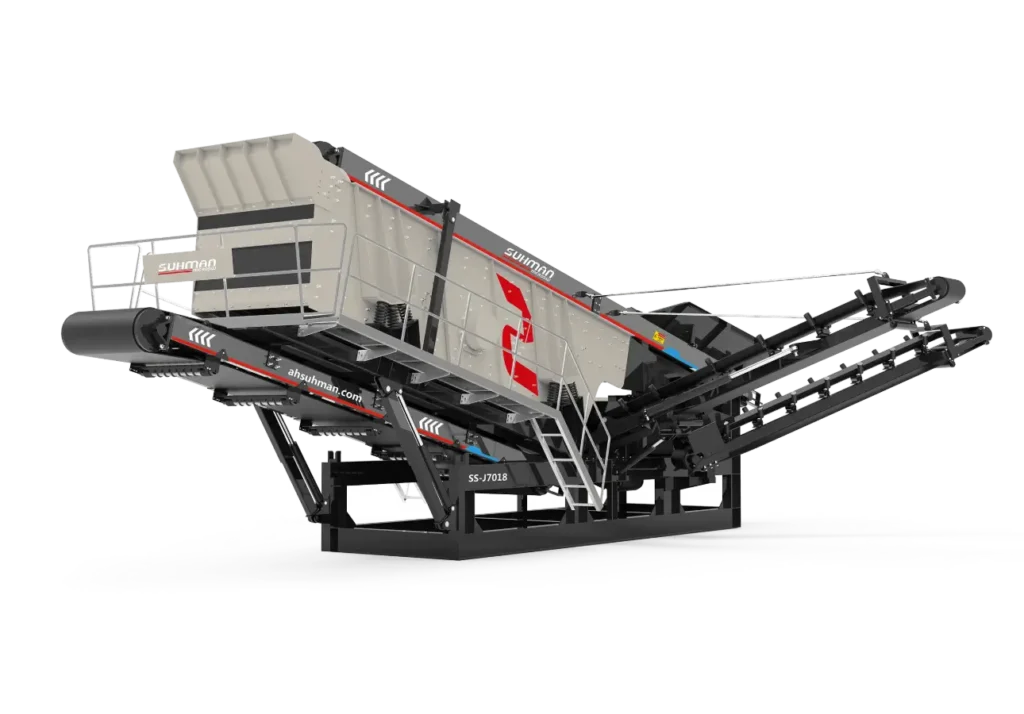

SS-J7018 Modular Inclined Vibrating Screening Plant
Modular aggregate screening
The SS-J7018 Modular Screening Plant processes 220-320 tph for demanding mining and aggregate operations. Its 3-deck vibrating screen simultaneously separates materials into four aggregate sizes. Featuring a robust modular design, it offers single or dual power (diesel) options and customizable engines (Tier 4/Euro V) to ensure high-efficiency sorting.
Product Parameters
| Project | Name | SS-J7018 |
|---|---|---|
| Feeding equipment | Feeding capacity (t/h) | 320 |
| Hopper volume (m³) | 5 | |
| Maximum feeding particle size (mm) | 100 | |
| Feeding height (mm) | 2700 | |
| vibrating screen | Vibration machine model | 7018 |
| Vibration screen size (mm) | 7000×1800 | |
| Processing capacity (t/h) | 300 | |
| Number of sieve layers (layers) | 3 | |
| Vibration screen power (kw) | 9.5×2 | |
| Main belt | Length x Width (mm) | 10800×1350 |
| Power (kw) | 5.5×2 | |
| Belt for finished materials | Length x Width (mm) | 7000×1350 |
| Unloading height (mm) | 2700 | |
| Power (kw) | 7.5 | |
| conveyor belt A | Length x Width (mm) | 7280×800 |
| Unloading height (mm) | 2900 | |
| Power (KW) | 5.5 | |
| conveyor belt B | Length x Width (mm) | 7280×800 |
| Power (kw) | 5.5 | |
| Unloading height (mm) | 2900 | |
| conveyor belt C | Length x Width (mm) | 5050×800 |
| Power (kw) | 5.5 | |
| Discharge height | 2800 | |
| Transition belt | Length x Width (mm) | 1750×770 |
| Power (kw) | 3 | |
| Complete machine | Whole machine weight (t) | 28 |
| Machine processing capacity (t/h) | 220-320 | |
| Total power (kw) | 57 | |
| Working dimensions (length, width, height/mm) | 14300×13000×4830 | |
| Transportation dimensions (length, width, height/mm) | 14800×3750×3550 |
Applications
Power Options
Emission Standards
Service & Support
- 12-Month Warranty
- Installation & Training
- Remote Diagnostics
- Spare Parts Supply
Application
SS-J7018 Modular Screening Plant is suitable for operations that require precise aggregate separation at medium to large production scales. Typical applications include:
- Mining and Quarrying: Ideal for classifying crushed materials in metal and non-metal mining operations to improve downstream processing efficiency.
- Aggregate Production: Widely used in sand and gravel plants, cement plants, and concrete batching stations for screening manufactured sand, gravel, and crushed stone.
- Construction Waste Recycling: Effective for separating reusable aggregates such as crushed concrete and bricks in recycling facilities.
- Industrial Raw Material Sorting: Applicable to pre-screening and final screening of raw materials like coal, non-ferrous ores, and refractory materials.
- Modular Crushing Systems: Can be integrated as a screening module within a larger custom-configured stationary crushing and screening line.
The SS-J7018 offers high screening efficiency, stable operation, and easy integration into fixed-site processing systems, making it a reliable choice for demanding material classification tasks.
Working Principle
SF-580D Heavy Duty Mobile Impact Crusher is a high-capacity, heavy-duty crawler-type mobile impact crusher designed to handle tough materials such as reinforced concrete, construction debris, and natural stone. At the heart of the machine is a powerful triple-chamber impact crusher with a large-diameter high-speed rotor that delivers efficient and consistent crushing through repeated impact and shearing forces.
Fine particles pass through the screen mesh and are collected below, while coarser particles slide down each deck. Each screen deck corresponds to a different size range, and multiple discharge conveyors transport the sorted material to stockpiles. The system can simultaneously produce four different sizes of aggregate. Its modular structure allows for easy assembly and maintenance, making it suitable for medium to large fixed screening projects.
Request A Quote
Tell us your raw material, required capacity, feeding size and final output size. Our engineer will recommend the suitable model for your project.
