SE-1160

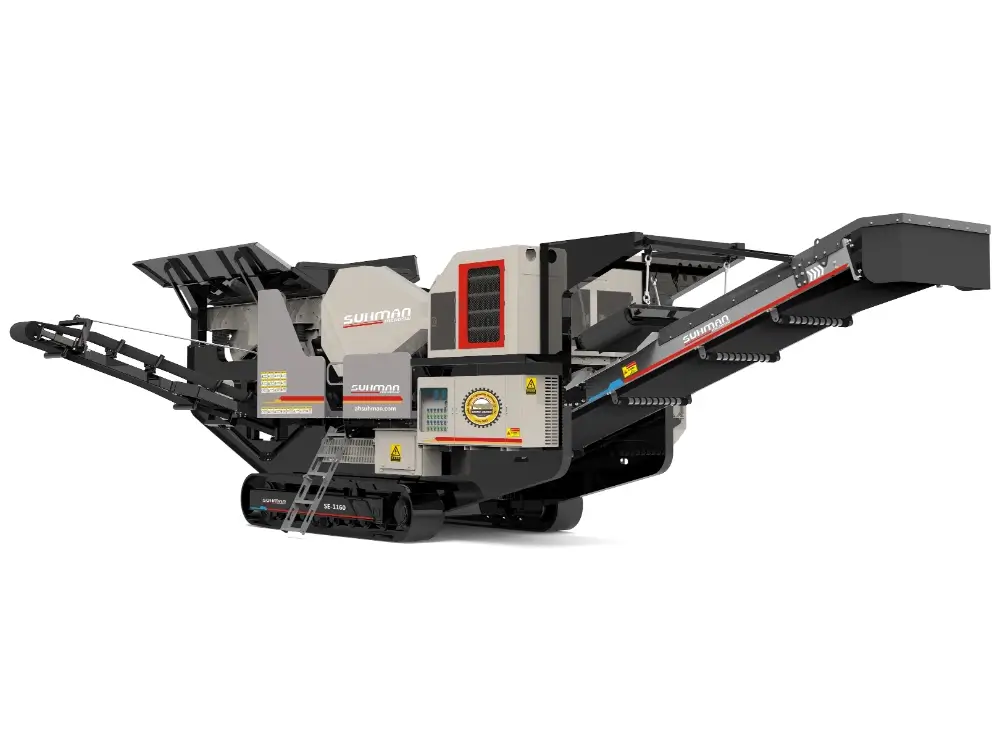

SE-1160 Heavy Duty Mobile Jaw Crusher
Built for heavy-duty crushing
The SE-1160 is a heavy-duty tracked mobile jaw crusher for primary crushing. It processes hard and soft materials up to ~800 mm, delivering ~170–450 tph. Its integrated feeder, crusher, and conveyors enable fast setup, high efficiency, and flexible on-site operation for mining, quarrying, and recycling.
Product Parameters
| Project | Name | SE-1160 |
|---|---|---|
| Feeding equipment | Feeding capacity (t/h) | 380 |
| Maximum feeding size (mm) | 700 | |
| Feeding height (mm) | 3800 | |
| Hopper volume (m³) | 6 | |
| Vibrating Feeder Length x Width (mm) | 4150×1200 | |
| Motor model | PJMV-65-6 | |
| Power (kW) | 4.5×2 | |
| crusher | Jaw crusher | 1160 |
| Crusher feed inlet length x width (mm) | 1160×800 | |
| Maximum feed particle size (mm) | 800 | |
| Crusher weight (t) | 23 | |
| Adjustment range of discharge port | 0-250 | |
| Main engine bearing model | 23060 | |
| Main breaking motor model | YE3-132L-6 | |
| Crusher power (kW) | 132KW | |
| Main belt | Stacking height (mm) | 2900 |
| Length x Width (mm) | 10600×1350 | |
| Electric roller model | M1-270 | |
| Power (kW) | 9.2×2 | |
| Tail belt | Stacking height (mm) | 2450 |
| Width (mm) | 800 | |
| Electric roller model | M1-270 | |
| Power (kW) | 5.5 | |
| De-ironing separator | Length x Width (mm) | 2100×910 |
| Power (kW) | 4 | |
| Complete machine | Engine power (kW) | 100 |
| Track chassis model | LDZ55-3657 | |
| Whole machine weight (t) | 48 | |
| Processing capacity of crusher (t/h) | 220-380 | |
| Total power of crushing operation (kW) | 168.9 | |
| Working dimensions (length, width, height/mm) | 15150×6250×3850 | |
| Transportation dimensions (length, width, height/mm) | 15000×3150×3850 |
Applications
Power Options
Emission Standards
Service & Support
- 12-Month Warranty
- Installation & Training
- Remote Diagnostics
- Spare Parts Supply
Application
SE-1160 is ideally suited for large-scale material handling and first-stage crushing in harsh environments. It performs exceptionally well with tough materials such as hard rock, large granite blocks, iron ore, and construction demolition debris. Its tracked mobility enables flexible movement across rugged terrain, making it suitable for remote mining operations, large quarry sites, and high-volume infrastructure projects.
Thanks to its high throughput capacity and durable structure, the SE-1160 supports continuous crushing even under heavy-duty cycles. It helps operators reduce reliance on stationary setups, minimize raw material transport, and accelerate on-site processing, especially where efficiency and reliability are critical to project success.
Working Principle
SE-1160 heavy duty mobile jaw crusher from Suhman is built for high-capacity primary crushing tasks, equipped with a large-format jaw crusher integrated onto a crawler chassis. It uses a time-tested mechanical compression method: bulk materials are fed into a deep crushing chamber where a powerful eccentric shaft drives the moving jaw to oscillate against a fixed jaw. As the material is trapped between the two, it is broken down through repeated compressive forces.
SE-1160 is designed for heavy-duty performance, featuring a reinforced frame, a large feed opening, and high crushing force. The hydraulic system allows quick and precise adjustment of the discharge setting, while the automatic lubrication and overload protection mechanisms ensure safe, low-maintenance operation under continuous load.
Request A Quote
Tell us your raw material, required capacity, feeding size and final output size. Our engineer will recommend the suitable model for your project.
