SF-580D

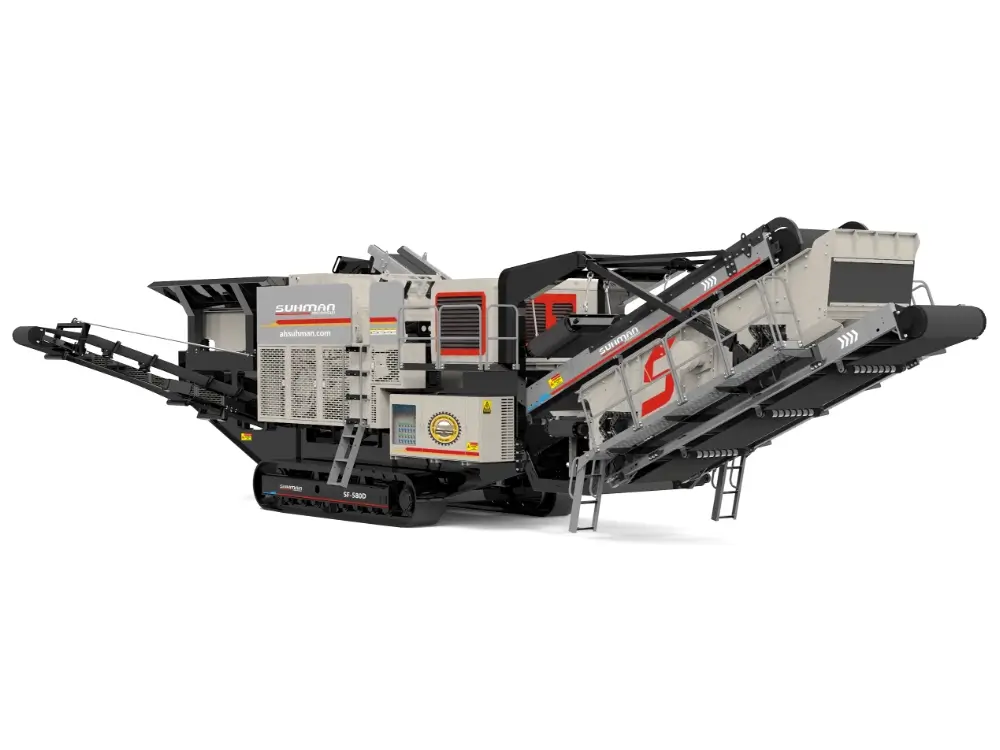

SF-580D Heavy Duty Mobile Impact Crusher
Heavy-duty impact crushing
The SF-580D Mobile Impact Crusher Plus is a heavy-duty, crawler-mounted plant delivering 150-350 TPH (max feed >700 mm). Designed for large-scale construction waste and soft rock, it features a powerful triple-chamber, high-speed rotor. Weighing 54.2 tons, it offers an intelligent control system, single- or dual-power options, and rapid mobility for demanding quarry and demolition projects.
Product Parameters
| Project | Name | SF-580D |
|---|---|---|
| Feed section | Feeding capacity (t/h) | 350 |
| Hopper volume (m³) | 6 | |
| Power (kW) | 4.5×2 | |
| Feeder size (length x width) (mm) | 3550×1460 | |
| Feeding height (mm) | 3900 | |
| Crusher | Crusher model | 1315 |
| Feed inlet size (length x width) (mm) | 1540×1100 | |
| Maximum feed particle size (mm) | >700 | |
| Adjustment range of discharge port (mm) | 0-180 | |
| Crusher weight (t) | 23 | |
| Crusher power (kW) | 315 | |
| Main belt | Length x Width (mm) | 11750*1600 |
| Unloading height (mm) | 3200 | |
| Power (kW) | 9.2×2 | |
| Belt for finished materials | Length x Width (mm) | 5155*1350 |
| Unloading height (mm) | 2380 | |
| Power (kW) | 5.5×2 | |
| Return material hanging sieve | Length x Width (mm) | 4820*2160 |
| Power (kW) | 5.5×2 | |
| Number of sieve layers (layers) | 1 | |
| Screen size (mm) | 4000*1540 | |
| Transition belt | Length x Width (mm) | 1750×970 |
| Power (kW) | 3 | |
| Side conveyor belt | Length x Width (mm) | / |
| Power (kW) | / | |
| Return conveyer belt | Length x Width (mm) | 8200*970 |
| Power (kW) | 5.5 | |
| De-ironing separator | Length x Width (mm) | 2100×910 |
| Power (kW) | 4 | |
| Complete machine | Track chassis model | LDZ55-3657 |
| Engine power (kW) | 100 | |
| Whole machine weight (t) | 54.2 | |
| Machine processing capacity (t/h) | 150-350 | |
| Total power of crushing work (kW) | 376.9 | |
| Working dimensions (length, width, height/mm) | 17950*3750*4500 | |
| Transportation dimensions (length, width, height/mm) | 17950*3750*3850 |
Applications
Power Options
Emission Standards
Service & Support
- 12-Month Warranty
- Installation & Training
- Remote Diagnostics
- Spare Parts Supply
Application
Engineered for demanding and high-load crushing tasks, the SF-580D is well-suited for projects that require large feed sizes, high throughput, and stable performance. It is commonly used in the following applications:
-
Construction Waste Recycling on a Large Scale
SF-580D Heavy Duty Mobile Impact Crusher excels at processing mixed demolition waste such as reinforced concrete, bricks, and debris. It helps convert waste into valuable recycled aggregate directly on-site, minimizing the need for transport and supporting circular construction practices. -
Urban Demolition and Infrastructure Removal
Ideal for the dismantling of bridges, highways, factories, and other urban infrastructure, the unit allows fast on-site crushing and quick relocation to the next job site, significantly reducing project downtime. -
Quarry and Aggregate Production Support
It can be deployed as a primary or secondary crusher in stone quarries, efficiently processing materials like limestone, basalt, or granite to produce high-quality aggregates for construction use. -
Heavy-Duty and Time-Sensitive Projects
For contractors needing fast setup, continuous operation, and minimal maintenance interruption, SF-580D offers reliable performance and user-friendly operation, making it a valuable solution for tight-schedule or remote projects.
With its robust structure, strong crushing capability, and intelligent control system, SF-580D stands out as a reliable choice for contractors and recycling companies. Optional configurations such as an overband magnet, dust suppression system, or remote control operation can further enhance safety, efficiency, and environmental compliance on site.
Working Principle
SF-580D Heavy Duty Mobile Impact Crusher is a high-capacity, heavy-duty crawler-type mobile impact crusher designed to handle tough materials such as reinforced concrete, construction debris, and natural stone. At the heart of the machine is a powerful triple-chamber impact crusher with a large-diameter high-speed rotor that delivers efficient and consistent crushing through repeated impact and shearing forces.
During operation, raw materials are first fed into a heavy-duty vibrating feeder equipped with a pre-screening system. This system separates fine particles and impurities before the material enters the main crushing chamber, improving crushing efficiency and protecting key components from premature wear. The hydraulic adjustment system allows operators to easily control the final discharge size, ensuring uniformity and a desirable aggregate shape.
SF-580D Heavy Duty Mobile Impact Crusher is also equipped with an advanced control system that enables remote monitoring and operational adjustments. The optional diesel-electric hybrid drive system reduces fuel consumption and increases energy efficiency. With a rugged crawler chassis, the unit offers excellent off-road mobility and site adaptability, even in rough or uneven terrain.
