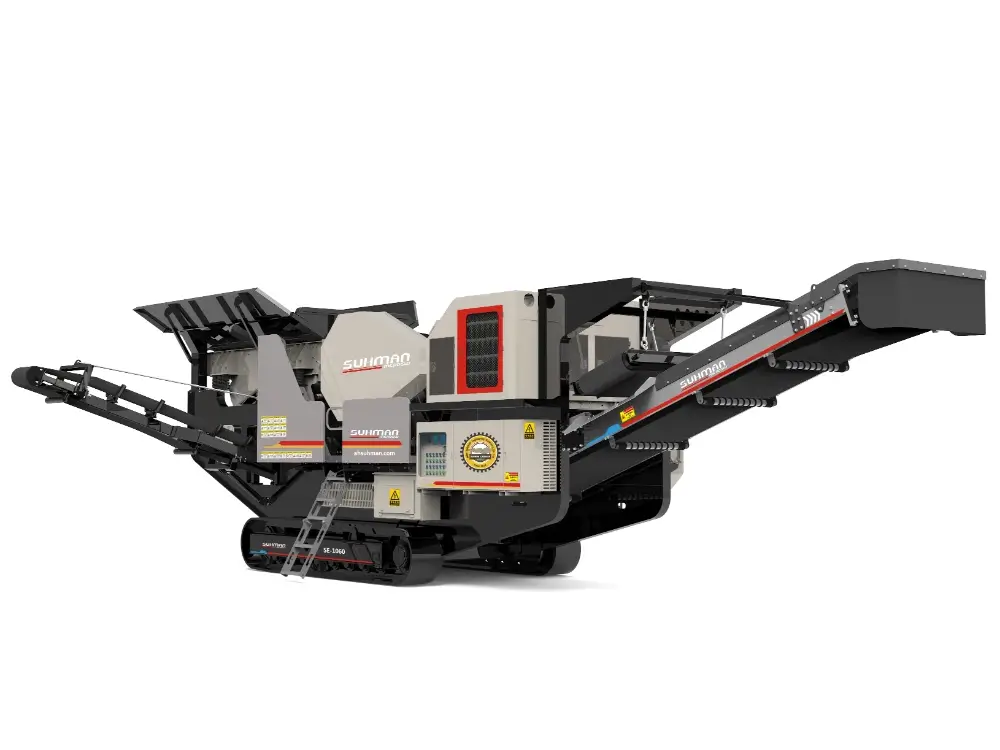

SE-1060 Mobile Jaw Crusher
High-capacity primary crushing
The SE-1060 Mobile Jaw Crusher is a heavy-duty tracked crushing plant designed for quarrying, mining, and construction applications. With a maximum feed size of 700mm and adjustable discharge from 80-250mm, it delivers exceptional performance in processing various materials including granite, basalt, limestone, and construction waste.
Product Parameters
| Project | Name | SE-1060-DP |
|---|---|---|
| Feeding equipment | Feeding capacity (t/h) | 200-250 |
| Maximum feeding size (mm) | 700 | |
| Feeding height (mm) | 3600 | |
| Hopper volume (m³) | 3 | |
| Vibrating Feeder - Length x Width (mm) | 4000×1100 | |
| Vibrating Feeder - Motor model | PJMV-65-6 | |
| Vibrating Feeder - Power (KW) | 4.5×2 | |
| crusher | Jaw crusher | 1060 |
| Crusher feed inlet (length x width) (mm) | 1060×750 | |
| Maximum feed particle size (mm) | 700 | |
| Crusher weight (t) | 18 | |
| Adjustment range of discharge port | 80-250 | |
| Main engine bearing model | 23060 | |
| Main breaking motor model | YE3-315L-6 | |
| Crusher power (KW) | 110 | |
| Main belt | Stacking height (mm) | 3000 |
| Width (mm) | 9500×1350 | |
| Electric roller model | M1-270 | |
| Power (KW) | 9.2×2 | |
| Tail belt | Stacking height (mm) | 2350 |
| Width (mm) | 880 | |
| Electric roller model | M1-270 | |
| Power (KW) | 5.5 | |
| De-ironing separator | Length x Width (mm) | 2100×910 |
| Power (KW) | 3 | |
| Complete machine | Engine power (KW) | 200 |
| Generator power (KW) | 200 | |
| Track chassis model | LDZ55-3657 | |
| Whole machine weight (t) | 46t | |
| Processing capacity of crusher (t/h) | 200-250 | |
| Total power of crushing operation (KW) | 139.4 | |
| Working dimensions (length, width, height/mm) | 15500×4150×3900 | |
| Transportation dimensions (length, width, height/mm) | 15500×3700×3900 |
Applicable Materials
Power Options
Emission Standards
Service & Support
- 12-Month Warranty
- Installation & Training
- Remote Diagnostics
- Spare Parts Supply
Application
SE-1060 tracked jaw crusher is engineered for primary crushing in demanding applications. It performs effectively across a wide range of materials including soft rock, construction waste, concrete blocks, and hard rock. Its tracked design allows it to navigate complex terrain, making it especially suitable for mobile operations in mining sites, urban demolition zones, road and bridge construction, and aggregate production yards.
Thanks to its mobility and quick setup capabilities, the SE-1060 jaw crusher reduces the need for fixed infrastructure, shortens project timelines, and lowers transportation costs of raw materials. Its compact design and high crushing capacity also make it ideal for use in space-constrained environments without compromising performance.
Working Principle
Suhman SE-1060 mobile jaw crusher by Suhman is designed with a robust jaw crushing system mounted on a tracked chassis. It operates based on a mechanical compression principle: material enters the crushing chamber, where a fixed jaw and a moving jaw form a V-shaped cavity. The moving jaw periodically presses against the fixed jaw, crushing the material through repeated compression and shearing. This motion is powered by a heavy-duty eccentric shaft, ensuring consistent performance and reliable throughput even under tough conditions.
The machine features hydraulic adjustment for setting the discharge size, allowing operators to fine-tune product granularity according to specific requirements. A vibration-resistant feeder system ensures stable material feeding, while a wide discharge belt enables smooth output of crushed materials.
