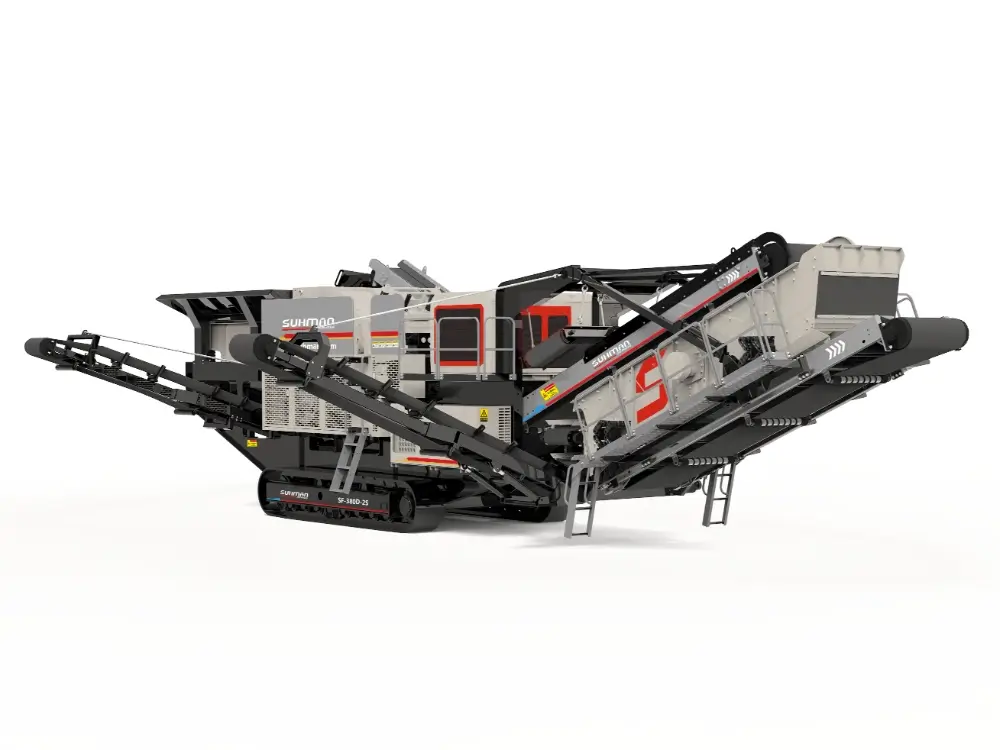

SF-380D-2S Mobile Integrated Crushing and Screening Machine
Three-size output in one unit
The SF-380D-2S Mobile Integrated Crushing and Screening Machine is a tracked plant featuring an impact crusher and an advanced 3-layer screen. Capable of producing three finished aggregate sizes simultaneously, it delivers 150-240 TPH with a 600mm max feed. Weighing 54.3 tons with hybrid power options, this all-in-one unit is ideal for urban recycling and quarrying.
Product Parameters
| Project | Name | SF-380D-2S |
|---|---|---|
| Feed section | Feeding capacity (t/h) | 230 |
| Hopper volume (m³) | 5 | |
| Power (kW) | 4.5×2 | |
| Feeder size (length x width) (mm) | 3550×1280 | |
| Feeding height (mm) | 3850 | |
| Crusher | Crusher model | 1214 |
| Feed inlet size (length x width) (mm) | 1380×1000 | |
| Maximum feed particle size (mm) | 600 | |
| Adjustment range of discharge port (mm) | 0-150 | |
| Crusher weight (t) | 18 | |
| Crusher power (kW) | 250 | |
| Main belt | Length x Width (mm) | 11200×1600 |
| Unloading height (mm) | 2900 | |
| Power (kW) | 9.2×2 | |
| Belt for finished materials | Length x Width (mm) | 5300×1350 |
| Unloading height (mm) | 2100 | |
| Power (kW) | 5.5×2 | |
| Return material hanging sieve | Length x Width (mm) | 5150*2160 |
| Power (kW) | 5.5×2 | |
| Number of sieve layers (layers) | 3 | |
| Screen size (mm) | 4600*1540 | |
| Transition belt | Length x Width (mm) | 1750×770 |
| Power (kW) | 3 | |
| Side conveyor belt | Length x Width (mm) | 5135×800 |
| Power (kW) | 5.5*2 | |
| Return conveyer belt | Length x Width (mm) | 7300×970 |
| Power (kW) | 5.5 | |
| De-ironing separator | Length x Width (mm) | 2100×910 |
| Power (kW) | 4 | |
| Complete machine | Track chassis model | LDZ55-3657 |
| Engine power (kW) | 100 | |
| Whole machine weight (t) | 54.3 | |
| Machine processing capacity (t/h) | 150-240 | |
| Total power of crushing work (kW) | 322.9 | |
| Working dimensions (length, width, height/mm) | 17800*10800*4700 | |
| Transportation dimensions (length, width, height/mm) | 17800*3780*3850 |
Applications
Power Options
Emission Standards
Service & Support
- 12-Month Warranty
- Installation & Training
- Remote Diagnostics
- Spare Parts Supply
Application
Key application areas include:
-
Construction Waste Recycling
Ideal for processing urban construction waste, this machine can transform discarded concrete, bricks, and other debris into reusable aggregates, supporting city recycling projects and adhering to environmental standards. -
Mining and Quarrying
The SF-380D-2S is designed to process medium-hard ores and rocks such as limestone and bluestone in mining and quarrying industries, providing high-quality aggregates for further processing and diverse applications. -
Road and Railway Construction
Perfect for infrastructure projects, including road and railway construction, the SF-380D-2S efficiently produces aggregates of varying sizes to meet the specific needs of construction projects, ensuring timely delivery and project success. -
Sand and Gravel Production Line
The SF-380D-2S is well-suited for sand and gravel production lines, with the ability to produce aggregates of various sizes according to market demand, enhancing both production efficiency and product quality. -
Coal and Metallurgy Industry
The SF-380D-2S is ideal for raw material crushing in the coal and metallurgy industries, capable of handling medium-hard materials to produce the required particle sizes for smelting and further processing. -
Environmental Protection and Resource Recycling
In the waste recycling industry, the SF-380D-2S processes a wide range of materials, helping reduce resource wastage and promoting eco-friendly processing.
Working Principle
The SF-380D-2S Mobile Integrated Crushing and Screening Machine is an upgraded version of the SF-380D impact crusher. It features an enhanced screening module, enabling the simultaneous production of three different sizes of finished products. This machine integrates feeding, crushing, and screening functions into a single unit, offering a more efficient and cost-effective solution. The innovative design reduces the need for multiple machines, streamlines material flow, and cuts down on transportation and installation costs.
The SF-380D-2S offers greater flexibility and productivity. With a single machine, it serves as a complete mobile stone crushing production line. It is capable of simultaneously producing three different sizes of finished products, ensuring continuous and smooth operation.
