SC-J85D

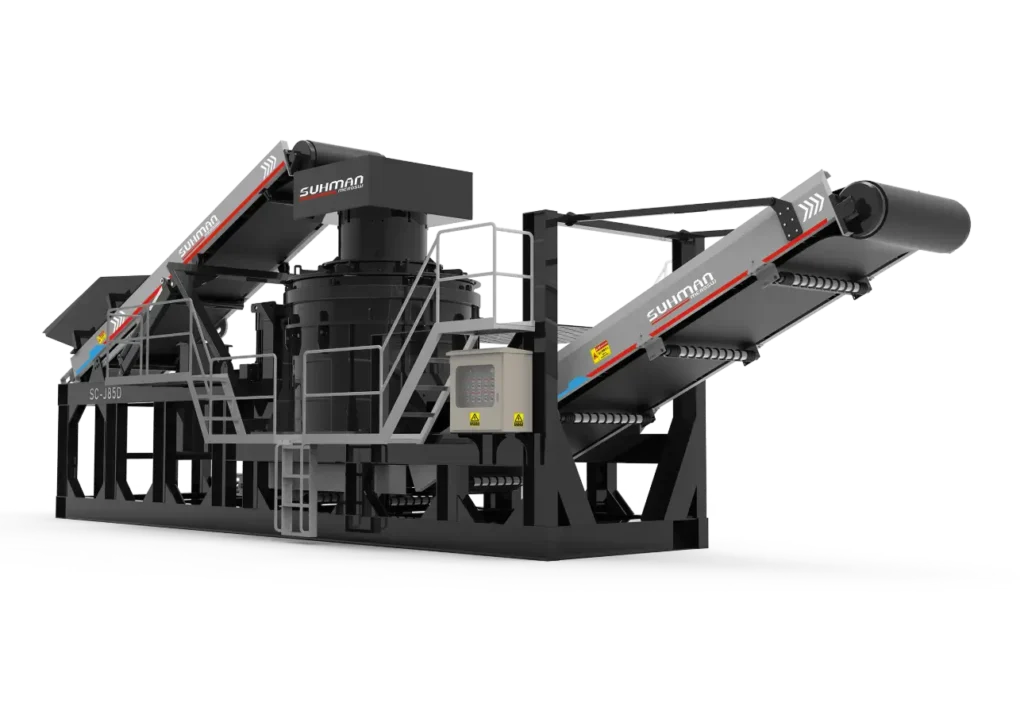

SC-J85D Modular VSI Sand Making Machine
Modular VSI sand production
The SC-J85D is a stationary modular VSI crusher with up to 250 t/h capacity and a 50 mm max feed size. Its modular structure allows straightforward transport, installation, and expansion. It supports rock-on-rock or rock-on-steel crushing modes, handling both hard and soft rock materials such as granite, basalt, and limestone.
Product Parameters
| Project | Name | SC-J85D |
|---|---|---|
| Feeding belt | Length × Width (mm) | 5000*1350 |
| Feeding height (mm) | 2800 | |
| Power (KW) | 5.5×2 | |
| Shaping machine | shaping machine | SK2400-D-SS |
| Maximum feed particle size (mm) | 100mm | |
| Adjustment range of discharge opening (mm) | 60-80 | |
| Weight of the plastic machine (t) | 11.9T | |
| Power (KW) | 250 | |
| Main belt | Length × Width (mm) | 9200*1600 |
| Discharge height (mm) | 2710 | |
| Power (KW) | 9.2*2 | |
| Complete machine | Overall weight (t) | 33.4 |
| Machine processing capacity (t/h) | 80-260T | |
| Total work done in crushing (KW) | 279.4 | |
| Working dimensions (length, width, height/m) | 13750×3350×3950 | |
| Transportation dimensions (length, width, height/m) | 14750×3350×3450 |
Applications
Power Options
Emission Standards
Service & Support
- 12-Month Warranty
- Installation & Training
- Remote Diagnostics
- Spare Parts Supply
Application
SC-J85D Modular VSI Sand Making Machine is ideal for projects that demand high-quality sand with excellent particle shape and uniform grading. It plays a critical role in many fixed-site applications, including:
-
Manufactured Sand Production
Suitable for processing hard materials like river pebbles, basalt, limestone, and granite into high-quality manufactured sand for use in construction, roads, and hydraulic projects. -
Commercial Concrete and Dry-Mix Mortar Plants
Acts as a core sand-making module, providing consistent fine aggregates to ensure the stability of concrete and mortar mix quality. -
High-Grade Road Construction
Produces sand with optimized shape and grading for use in asphalt mixtures and stabilized base materials, enhancing road durability. -
Comprehensive Utilization of Mine Tailings
Converts low-value waste materials and tailings into usable sand, increasing resource efficiency and reducing environmental pressure.
With its compact footprint, SC-J85D Modular VSI Sand Making Machine is well-suited for deployment in space-constrained environments. Its modular architecture significantly shortens installation time and supports future capacity upgrades. It offers an efficient and scalable solution for stationary sand-making systems where reliability and adaptability are key.
Working Principle
SC-J85D Modular VSI Sand Making Machine is a stationary vertical shaft impact (VSI) crusher designed with a modular structure, enabling flexible deployment in various sand production lines. At its core, it utilizes a high-speed rotor that throws incoming materials outward with strong centrifugal force. These materials collide either with the chamber lining or with other particles, generating powerful impact forces. This “rock-on-rock” or “rock-on-steel” crushing mechanism efficiently reduces particle size and improves aggregate shape.
Multiple feeding configurations are available—central feeding or combined central and ring feeding—allowing for adjustments based on material characteristics. The crushing chamber features replaceable liners, simplifying maintenance and reducing operational costs. SC-J85D Modular VSI Sand Making Machine also supports customizable rotor designs and distributor structures to match different raw materials and production requirements. Its modular, block-style layout makes it easy to transport, install, and expand, ensuring compatibility with various fixed production setups.
