SF-380D-S

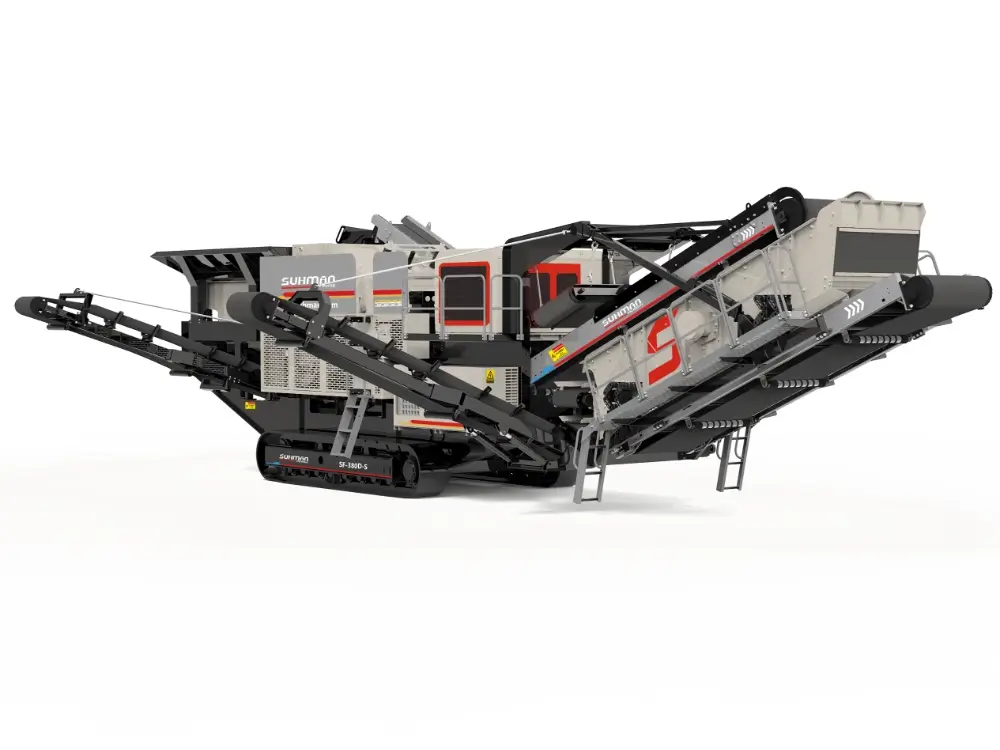

SF-380D-S Mobile Integrated Crushing and Screening Machine
Crushing and screening in one
The SF-380D-S Mobile Integrated Crushing and Screening Machine is a crawler-mounted plant that combines feeding, impact crushing, and a dual-layer screen into a single unit. Delivering 150-240 TPH with a 600mm max feed, it produces two distinct aggregate sizes simultaneously. Weighing 51.4 tons with optional hybrid power, it is highly efficient for urban recycling and quarrying.
Product Parameters
| Project | Name | SF-380D-S |
|---|---|---|
| Feed section | Feeding capacity (t/h) | 230 |
| Hopper volume (m³) | 5 | |
| Power (kw) | 4.5×2 | |
| Feeder size (length x width) (mm) | 3550×1280 | |
| Feeding height (mm) | 3850 | |
| Crusher | Crusher model | 1214 |
| Feed inlet size (length x width) (mm) | 1380×1000 | |
| Maximum feed particle size (mm) | 600 | |
| Adjustment range of discharge port (mm) | 0-150 | |
| Crusher weight (t) | 18 | |
| Crusher power (kw) | 250 | |
| Main belt | Length x Width (mm) | 11200×1600 |
| Unloading height (mm) | 2900 | |
| Power (kw) | 9.2×2 | |
| Belt for finished materials | Length x Width (mm) | 5000×1350 |
| Unloading height (mm) | 2100 | |
| Power (kw) | 5.5×2 | |
| Return material hanging sieve | Length x Width (mm) | 5150*2160 |
| Power (kw) | 5.5×2 | |
| Number of sieve layers (layers) | 2 | |
| Screen size (mm) | 4600×1540 | |
| Transition belt | Length x Width (mm) | 1750×770 |
| Power (kw) | 3 | |
| Side conveyor belt | Length x Width (mm) | 5150×800 |
| Power (kw) | 5.5 | |
| Return conveyer belt | Length x Width (mm) | 7300×970 |
| Power (kw) | 5.5 | |
| De-ironing separator | Length x Width (mm) | 2100×910 |
| Power (kw) | 4 | |
| Complete machine | Track chassis model | LDZ55-3657 |
| Engine power (kw) | 100 | |
| Whole machine weight (t) | 51.4 | |
| Machine processing capacity (t/h) | 150-240 | |
| Total power of crushing work (kw) | 317.4 | |
| Working dimensions (length, width, height/mm) | 17800×7000×4700 | |
| Transportation dimensions (length, width, height/mm) | 17800×3780×3850 |
Applications
Power Options
Emission Standards
Service & Support
- 12-Month Warranty
- Installation & Training
- Remote Diagnostics
- Spare Parts Supply
Application
The SF-380D-S is versatile and can be applied across a wide range of industries:
-
Construction Waste Recycling
Designed for urban recycling projects, the SF-380D-S efficiently processes discarded concrete, bricks, and other demolition debris into reusable aggregates. This supports sustainable city development while meeting environmental compliance standards. -
Mining and Quarrying
Well-suited for processing medium-hard rocks and ores such as limestone and bluestone, the SF-380D-S ensures consistent production of high-quality aggregates for downstream processing or direct use in construction and industrial applications. -
Road and Railway Construction
For large-scale infrastructure projects, the SF-380D-S reliably produces two aggregate sizes that can meet diverse engineering specifications, supporting timely project delivery and reducing dependence on external aggregate supply. -
Sand and Gravel Production Line
The upgraded screening module allows flexible adjustment of output sizes to meet market demand, improving overall production efficiency and product quality in sand and gravel operations. -
Coal and Metallurgy Industry
The SF-380D-S is also applicable in coal preparation and metallurgical processes, where it handles medium-hard feedstock and delivers precise particle sizes required for smelting or further treatment. -
Environmental Protection and Recycling
By processing a variety of recyclable materials, the SF-380D-S reduces resource wastage and promotes eco-friendly material recovery, making it a sustainable solution for modern industries.
Working Principle
The SF-380D-S Mobile Integrated Crushing and Screening Plant is an advanced upgrade of the SF-380D impact crusher. Equipped with an improved screening module, it is capable of producing two different sizes of finished aggregates simultaneously. By combining feeding, crushing, and screening functions into a single compact unit, this machine delivers a highly efficient and cost-effective solution for aggregate production.
Its integrated design minimizes the need for multiple separate machines, simplifies material handling, and significantly reduces both transportation and installation expenses. The SF-380D-S offers exceptional flexibility and reliability, operating as a complete mobile stone crushing line while ensuring stable and continuous output.
