SUHMAN supplies mobile jaw crushers, portable jaw crushing plants, and modular jaw crusher systems for primary crushing in quarry, mining, aggregate, and construction recycling projects. Our jaw crusher series covers compact mobile units, heavy-duty tracked crushers, and modular plants for different capacity, feed size, and site layout requirements.
Compare SUHMAN jaw crusher models by capacity, feed size, crusher inlet, discharge range, power, weight, and working dimensions. Specifications may vary depending on final configuration and project requirements.

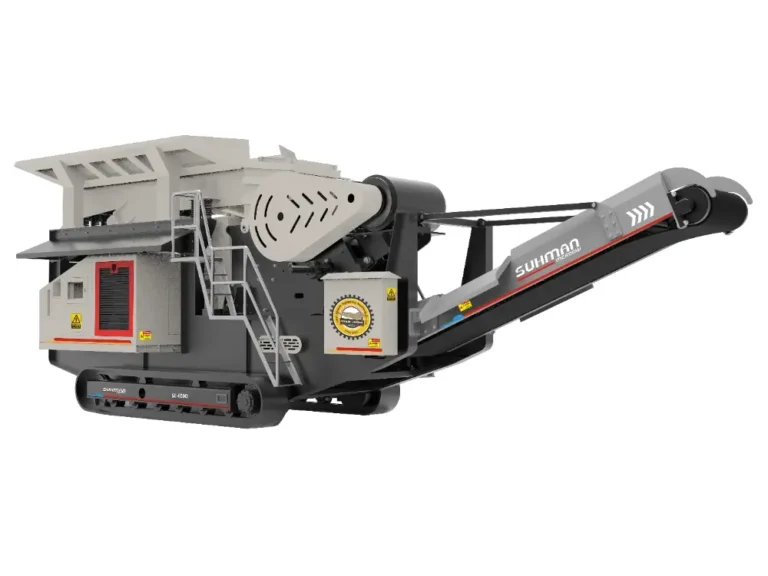

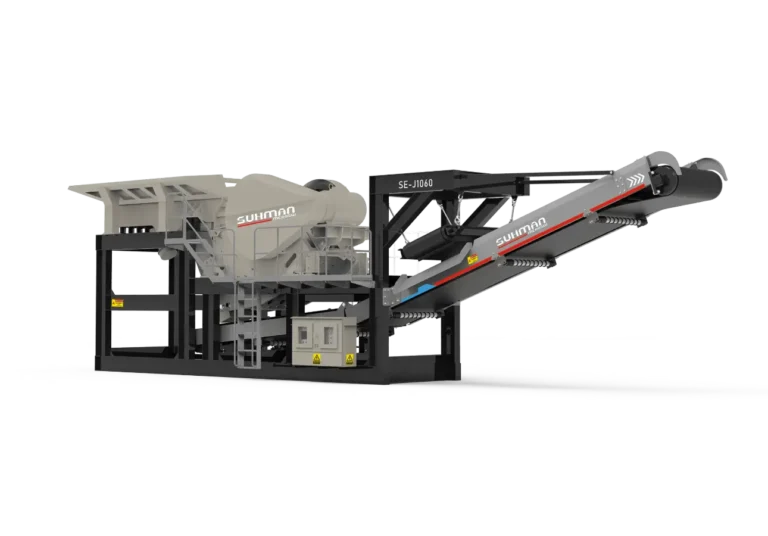

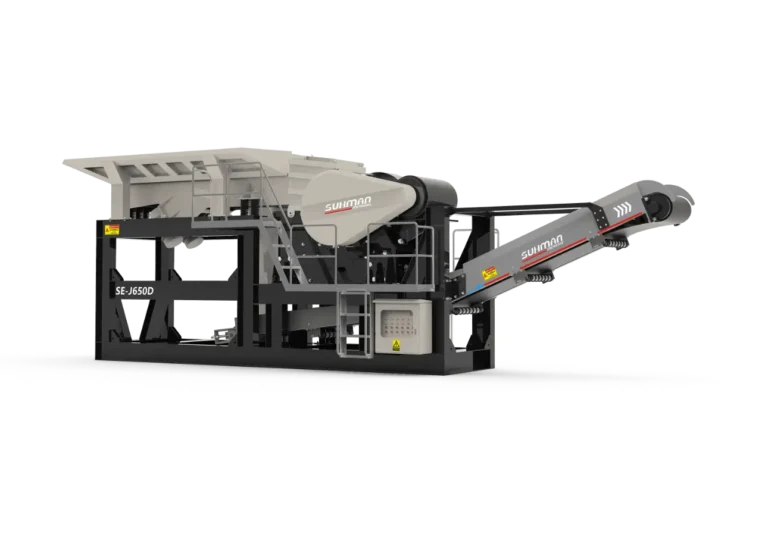

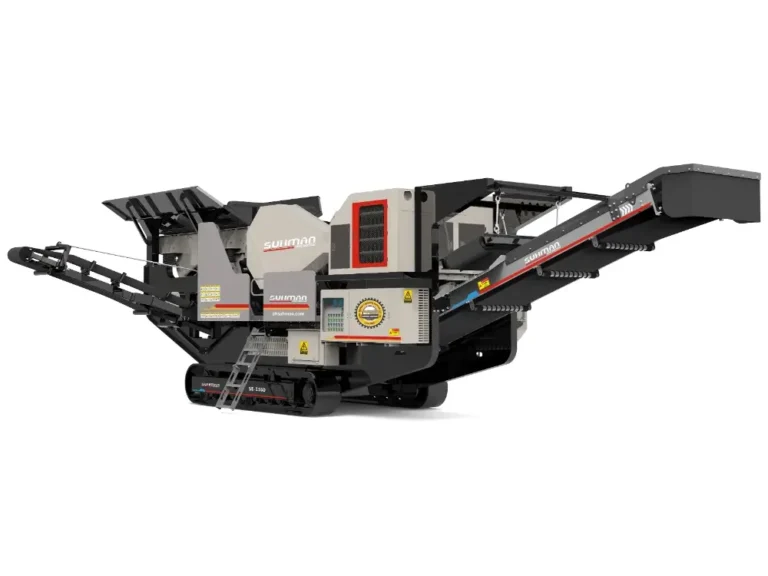

| Parameter | TZ6510 Dual-core Jaw Crusher | SE-J1060 Modular Jaw Crusher | SE-J650D Modular Mini Jaw Crusher | SE-650D Mini Mobile Jaw Crusher | SE-1160 Heavy Duty Mobile Jaw Crusher | SE-1060 Mobile Jaw Crusher |
|---|---|---|---|---|---|---|
| Product Type | Dual-core Jaw Crusher | Modular Jaw Crusher | Modular Mini Jaw Crusher | Track-mounted Mini Mobile Jaw Crusher | Track-mounted Heavy Duty Mobile Jaw Crusher | Track-mounted Mobile Jaw Crusher |
| Listed Capacity | 80–300 TPH | 200–250 TPH | 50–130 TPH | 50–130 TPH | 230–280 TPH | 200–250 TPH |
| Processing Capacity | 80–300 TPH | 180–350 TPH | 50–130 TPH | 50–130 TPH | 220–380 TPH | 200–250 TPH |
| Maximum Feeding Size | 500 mm | 700 mm | 500 mm | 500 mm | 700 mm | 700 mm |
| Crusher Feed Inlet | 650×1000 mm | 1060×750 mm | 500×700 mm | 500×700 mm | 1160×800 mm | 1060×750 mm |
| Maximum Feed Particle Size | 500 mm | 700 mm | 500 mm | 500 mm | 800 mm | 700 mm |
| Discharge Range | 65–185 mm | 0–180 mm | 0–100 mm | 0–100 mm | 0–250 mm | 80–250 mm |
| Hopper Volume | — | 5 m³ | 4 m³ | 4 m³ | 6 m³ | 3 m³ |
| Feeding Height | — | 3800 mm | 3500 mm | 3500 mm | 3800 mm | 3600 mm |
| Vibrating Feeder Size | — | 4150×1200 mm | 3600×700 mm | 3600×700 mm | 4150×1200 mm | 4000×1100 mm |
| Feeder Power | — | 4.5×2 kW | 3×2 kW | 3×2 kW | 4.5×2 kW | 4.5×2 kW |
| Crusher Model | TZ6510 Dual-core | Jaw Crusher 1060 | Jaw Crusher 57 | Jaw Crusher 57 | Jaw Crusher 1160 | Jaw Crusher 1060 |
| Crusher Power | 132 kW | 110 kW | 75 kW | 75 kW | 132 kW | 110 kW |
| Crusher Weight | 12 t excluding motor | 18 t | 10.1 t | 10.1 t | 23 t | 18 t |
| Main Bearing Model | — | 23060 | — | — | 23060 | 23060 |
| Main Motor Model | 132 kW, 8-pole motor | YE3-160L-6 | — | — | YE3-132L-6 | YE3-315L-6 |
| Main Belt Size | — | 10600×1350 mm | 800×15100 mm | 800×15100 mm | 10600×1350 mm | 9500×1350 mm |
| Main Belt Stacking / Discharge Height | — | 2800 mm | 2100 mm | 2100 mm | 2900 mm | 3000 mm |
| Main Belt Power | — | 9.2×2 kW | 11 kW | 11 kW | 9.2×2 kW | 9.2×2 kW |
| Tail Belt Stacking Height | — | 2450 mm | — | — | 2450 mm | 2350 mm |
| Tail Belt Width | — | 800 mm | — | — | 800 mm | 880 mm |
| Tail Belt Power | — | 5.5 kW | — | — | 5.5 kW | 5.5 kW |
| De-ironing Separator | — | 2100×910 mm / 4 kW | RCYD-12 / 3 kW | — | 2100×910 mm / 4 kW | 2100×910 mm / 3 kW |
| Engine Power | — | — | — | 100 kW | 100 kW | 200 kW |
| Generator Power | — | — | — | 100 kW | — | 200 kW |
| Track Chassis Model | — | — | — | — | LDZ55-3657 | LDZ55-3657 |
| Whole Machine Weight | 12 t excluding motor | 38 t | 16.3 t total modular weight | 30 t | 48 t | 46 t |
| Total Crushing Operation Power | — | 146.9 kW | — | 92 kW | 168.9 kW | 139.4 kW |
| Working Dimensions | 3583×1964×2536 mm | 15150×6250×3450 mm | — | 10000×2700×3500 mm | 15150×6250×3850 mm | 15500×4150×3900 mm |
| Transportation Dimensions | — | 15150×3150×3450 mm | — | — | 15000×3150×3850 mm | 15500×3700×3900 mm |
| View Product | View Details | View Details | View Details | View Details | View Details | View Details |
Note: “—” means the parameter is not listed on the corresponding product page. Final specifications may vary by configuration, power version, and project requirements.
A mobile jaw crusher is designed for the first stage of rock and ore crushing. Large materials are fed into the jaw crusher and reduced by compression between a fixed jaw plate and a moving jaw plate. Compared with a stationary crushing line, a mobile jaw crusher plant can be moved closer to the working face, helping contractors reduce material handling distance, installation work, and site preparation time.
SUHMAN provides both tracked mobile jaw crusher machines and modular jaw crushing plant solutions. For projects that require high mobility, our track-mounted models are suitable for quarry movement, mining sites, road construction, and concrete recycling. For fixed or semi-fixed crushing stations, our modular jaw crusher plants offer stable structure, convenient installation, and strong primary crushing performance.
Choose from compact mobile jaw crushers, heavy-duty tracked jaw crushers, and modular jaw crusher plants according to your feed size, required output, mobility needs, and project budget. Each model is designed for primary crushing of hard rock, limestone, granite, basalt, construction waste, and other materials.
The right mobile jaw crusher depends on material hardness, maximum feed size, expected output, site space, transportation requirements, and whether the project needs a fully mobile or modular crushing solution. SUHMAN can help buyers select a suitable jaw crusher model based on actual working conditions instead of only comparing capacity numbers.
For small and medium crushing jobs, a mini mobile jaw crusher or compact mobile jaw crusher can provide flexible operation with lower transport and setup requirements. For large quarry, mining, or aggregate production projects, a heavy mobile unit with jaw crusher is more suitable for continuous primary crushing and higher throughput.
Maximum feed size is one of the most important selection factors. If the raw material contains large rock, granite, basalt, or demolition concrete blocks, buyers should select a jaw crusher with a larger feed opening and stronger crushing chamber. A machine that is too small may reduce efficiency and increase wear cost.
A tracked mobile jaw crusher is suitable for projects where the equipment needs to move between working areas. A modular jaw crusher plant is better for semi-fixed crushing stations where the buyer needs faster installation than a traditional stationary line but does not require frequent relocation.
For quarry and mining projects, crushing strength, jaw plate durability, and output stability are usually the main priorities. For concrete recycling and construction waste processing, feed size, discharge control, metal separation, and site mobility are more important.
SUHMAN mobile jaw crushing plants are used for primary crushing in quarry, mining, aggregate, infrastructure, and recycling projects. Whether the buyer needs a portable jaw rock crusher for hard stone or a mobile jaw crusher plant for construction waste, the equipment can be configured according to site conditions and final material requirements.
For quarry operations, a mobile jaw crusher can be used as the primary crushing unit for limestone, granite, basalt, and other natural stone. The machine can work close to the extraction area and reduce the need for long-distance material transfer before crushing.
In mining projects, mobile jaw crushers are suitable for reducing large ore materials before secondary crushing or screening. Heavy-duty models are recommended when the material is hard, abrasive, or requires continuous production under demanding site conditions.
A mobile jaw crushing plant can be used as the first stage of an aggregate production line. After primary crushing, the material can be sent to cone crushers, impact crushers, screens, or stockpiling conveyors to produce different aggregate sizes.
For concrete recycling, a mobile or portable jaw crusher can process demolished concrete, road base material, and construction rubble. With the right configuration, the machine can help contractors produce reusable aggregate from waste material.
For road construction, infrastructure, and temporary job sites, a compact mobile jaw crusher can provide flexible crushing capacity without building a full fixed crushing station. It is suitable for contractors who need mobility, quick setup, and practical output.
Mobile jaw crusher price depends on model size, feeding capacity, crusher opening, power system, track chassis, conveyor configuration, and optional equipment.
Request PriceA compact mobile jaw crusher for sale is usually more suitable for small and medium projects, while a heavy-duty mobile jaw crusher requires a stronger frame, larger crusher chamber, higher power, and heavier chassis. These factors directly affect the final equipment price.
Tracked mobile jaw crushers, diesel-electric systems, modular plants, and different conveyor layouts can lead to different cost levels. Buyers should compare the total configuration, not only the basic crusher body price.
Hopper design, vibrating feeder size, belt conveyor length, magnetic separator, dust control, platform design, and transport dimensions may all be adjusted based on the project. A properly configured machine can reduce installation problems and improve long-term operating efficiency.
SUHMAN is a China mobile jaw crusher manufacturer and supplier focused on crushing and screening equipment for quarry, mining, aggregate, and recycling projects. We provide mobile jaw crushers, portable jaw crusher solutions, modular jaw crusher plants, and related crushing line configurations for international buyers, contractors, distributors, and project owners.
As a mobile jaw crusher factory, SUHMAN supports model selection, project configuration, technical communication, spare parts supply, and export delivery. Buyers can compare different jaw crusher models by capacity, feed size, crusher opening, working dimensions, and mobility type before confirming the final configuration.
For customers looking for a portable jaw crusher manufacturer or mobile jaw crusher supplier, SUHMAN can provide factory-direct equipment solutions instead of only offering standard catalog machines. The goal is to match the machine to the actual crushing material, production target, and site layout.
Direct communication with the manufacturer helps buyers confirm technical details, customize configuration, and reduce unnecessary middle steps during equipment sourcing.
SUHMAN helps buyers choose between compact mobile jaw crushers, heavy-duty tracked jaw crushers, and modular jaw crusher plants according to capacity, feed size, and site conditions.
Our equipment can be supplied for overseas quarry, mining, aggregate, and recycling projects with configuration support and export documentation assistance.
Jaw plates, bearings, belts, feeders, motors, and other wear or maintenance parts can be supplied according to the selected model and working condition.
In many markets, the terms mobile jaw crusher and portable jaw crusher are sometimes used in the same way. However, they may refer to different equipment structures depending on the supplier and region.
A mobile jaw crusher usually refers to a track-mounted or self-moving crushing machine that can move around the job site with its own crawler chassis. It is suitable for quarry movement, mining sites, demolition recycling, and projects where the equipment needs to relocate frequently.
A portable jaw crusher may refer to a transportable jaw crusher plant, wheel-mounted crushing plant, or modular crushing system. It is easier to move than a traditional stationary line, but it may not always have the same on-site mobility as a tracked machine.
SUHMAN provides tracked mobile jaw crushers and modular jaw crushing plant solutions. If you are searching for a portable jaw crusher for sale, our team can help confirm whether a tracked mobile model or modular jaw crusher plant is more suitable for your project.
Different crushing projects require different equipment configurations. A mobile jaw crusher used for hard rock quarrying may need a stronger crusher chamber and heavy-duty feeding system, while a portable jaw crushing plant used for concrete recycling may require magnetic separation, flexible discharge control, and easier transport dimensions.
The feeder size, hopper volume, jaw crusher opening, and crushing chamber should match the raw material size and production target. Proper feeding design helps improve crushing stability and reduce material blockage.
Main belt length, discharge height, side conveyor, and stockpiling layout can be adjusted according to site space and downstream equipment. This is especially important when the mobile jaw crusher plant works with screens or secondary crushers.
Depending on project requirements, buyers can choose different power configurations and mobility types. Track-mounted mobile jaw crushers are suitable for flexible job sites, while modular jaw crusher plants are suitable for semi-fixed production lines.
Common questions about mobile jaw crusher price, portable jaw crusher selection, compact models, rental alternatives, used equipment comparison, and technical dimensions.
A mobile jaw crusher is mainly used for primary crushing of large rocks, ores, concrete, and construction waste. It reduces large materials into smaller sizes before secondary crushing, screening, or stockpiling. Common applications include quarry crushing, mining, aggregate production, road construction, and concrete recycling.
Yes. SUHMAN provides mobile jaw crushers for sale, including compact mobile jaw crushers, heavy-duty tracked jaw crushers, and modular jaw crusher plant solutions. Buyers can choose a suitable model according to required capacity, maximum feed size, discharge size, and working site conditions.
Mobile jaw crusher price depends on crusher model, feeding capacity, feed opening, power system, track chassis, conveyor layout, optional equipment, and shipping destination. To get an accurate quotation, please provide your material type, maximum feed size, required output, final product size, and destination port.
A mobile jaw crusher usually refers to a track-mounted crusher that can move around the job site. A portable jaw crusher may refer to a transportable, wheel-mounted, or modular jaw crushing plant. In some markets, the two terms are used interchangeably. SUHMAN can help buyers select the right structure based on mobility and installation requirements.
Yes. For smaller production needs, limited site space, or flexible job sites, a compact mobile jaw crusher or mini mobile jaw crusher can be a practical choice. These models are suitable for small quarry work, construction waste processing, road projects, and medium-output crushing applications.
SUHMAN offers portable jaw crusher solutions, including tracked mobile jaw crushers and modular jaw crushing plants. If you are looking for a portable jaw crusher for sale, our team can recommend a suitable configuration based on your mobility requirement, site layout, and crushing capacity.
SUHMAN mainly supplies new mobile jaw crushers for sale and export projects. We do not focus on rental equipment. For buyers comparing rental options, purchasing a factory-direct mobile jaw crusher may provide better long-term control over machine configuration, spare parts, and operating cost.
SUHMAN mainly supplies new mobile jaw crushers and modular jaw crusher plants. For buyers comparing used mobile jaw crushers, a new factory-direct machine can provide clearer specifications, updated configuration, warranty support, and more reliable spare parts availability.
Before purchasing a mobile jaw crusher, buyers should check working dimensions, transport dimensions, feeding height, discharge height, machine weight, and site access conditions. These dimensions affect transportation, installation, maintenance space, and whether the machine can operate smoothly on the project site.
When choosing a mobile jaw crusher manufacturer, compare the supplier’s product range, technical support, model selection ability, factory-direct communication, spare parts supply, and export experience. A suitable manufacturer should help you select the right crusher configuration instead of only offering a standard model.
Tell us your raw material, maximum feed size, required capacity, final product size, working site condition, and destination country. SUHMAN will recommend a suitable mobile jaw crusher or modular jaw crushing plant and provide a factory-direct quotation for your project.
